Product Description
GYXY Outdoor Fiber Optic Cable

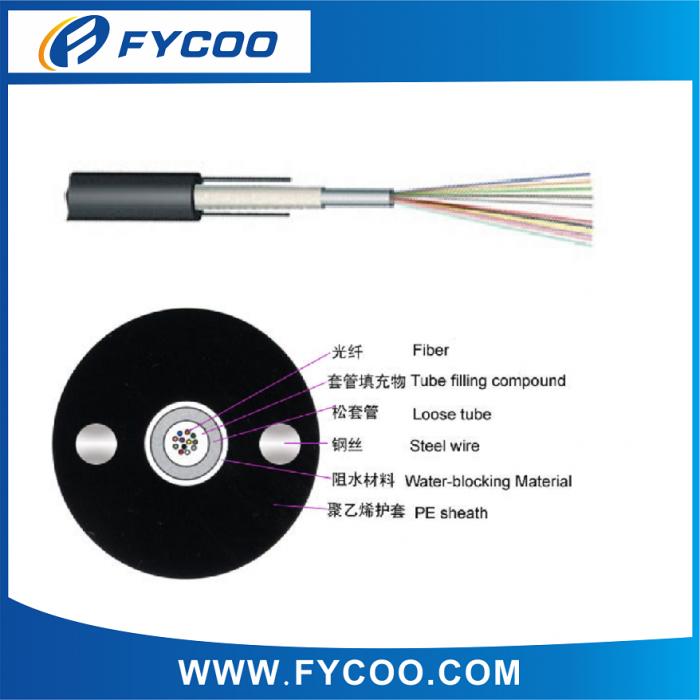

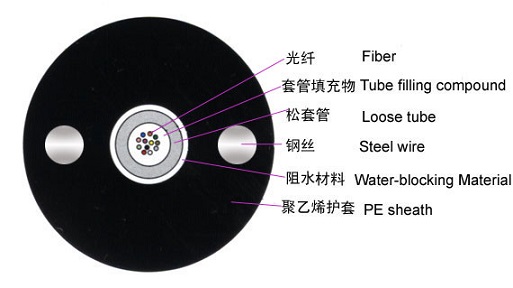

CROSS SECTION
SPECIFICATION:
The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel steel wires are placed at the two sides. The cable is completed with a polyethylene (PE) sheath.
CHARACTERISTICS:
1.Good mechanical and temperature performance
2.High strength loose tube that is hydrolysis resistant
3.Special tube filling compound ensure a critical protection of fiber
4.Two parallel steel wires ensure tensile strength
5.PE sheath protects cable from ultraviolet radiation
6.Small diameter, light weight and friendly installation
7.Long delivery length
STANDARD:
GYXY cable complies with Standard YD/T 769-2003.
FIBER CHARACTERISTIC:
G.652 G.655 50/125μm 62.5/125μm Attenuation (+20℃) @850nm ≤3.0 dB/km ≤3.0 dB/km @1300nm ≤1.0 dB/km ≤1.0 dB/km @1310nm ≤0.36 dB/km ≤0.40 dB/km @1550nm ≤0.22 dB/km ≤0.23dB/km Bandwidth (Class A) @850nm ≥500 MHz·km ≥200 MHz·km @1300nm ≥1000 MHz·km ≥600 MHz·km Numerical Aperture 0.200±0.015NA 0.275±0.015NA Cable Cut-off Wavelengthλcc ≤1260nm ≤1480nm
TECHNICAL PARAMETERS:
Cable Type Fiber Count Cable Dia mm Cable Weight kg/km Tensile Strength Long/Short Term N Crush Resistance Long/Short Term N/100mm Bending Radius Static/Dynamic mm GYXY 2~12 9.5 90 600/1500 300/1000 10D/20D GY XY 2~12 10.2 100 1000/3000 1000/3000 10D/20D
