Product Description

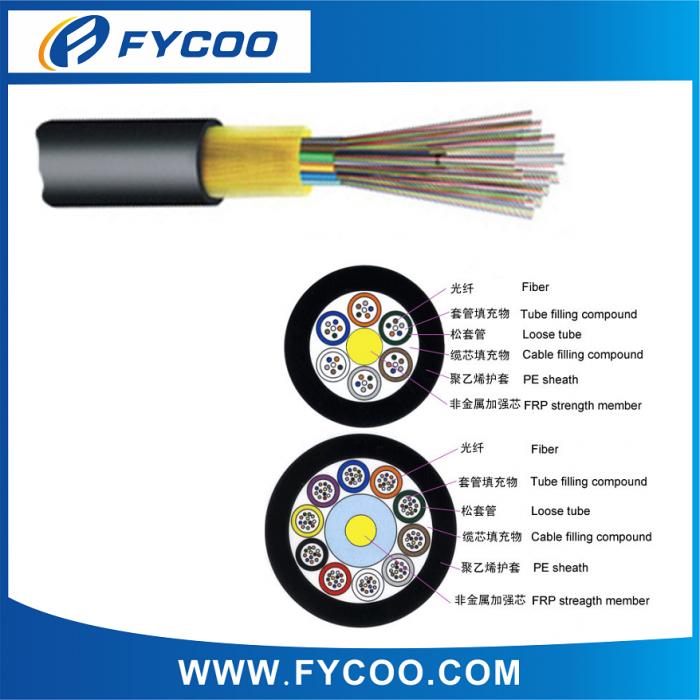

GYFTY Outdoor Fiber Optic Cable
APPLICATION:
1.Laying method: Duct
2.Suitable for long-distance trunk and LAN communication in high-voltage area or access to telecom network. Especially for power transmission system, excessive thunder areas and high electromagnetic interference.
3.Fiber type: Single-mode/Multimode
CHARACTERISTICS:
1.Non-metallic structure providing excellent anti-electromagnetism,anti-thunder and anti-static performance.
2.Accurate fiber excess length ensures good mechanical and temperature performance.

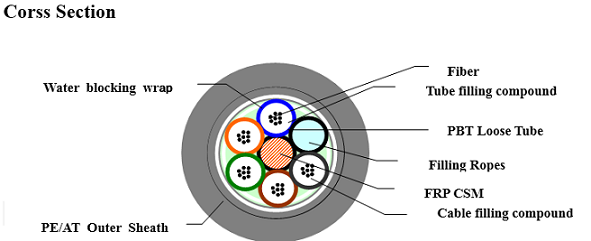

3.Specially designed compact structure is good at preventing loose tubes from shrinking.
4.High strength loose tube that is hydrolysis resistant and special tube filling compound ensure a citical protection of fiber.
FIBER CHARACTERISTIC:
Fiber style Unit SM G652D MM 50/125 MM 62.5/125 MM OM3-300 Condition nm 1310/1550 850/1300 850/1300 850/1300 Attenuation dB/km 0.36/0.23 3.0/1.0 3.0/1.0 3.0/1.0 Dispersion 1550nm Ps (nm ·km) ≤18 ----- ----- Dispersion 1625nm Ps (nm ·km) ≤22 ----- ----- Bandwidth 850nm MHZ ·.km ----- ≥400 ≥160 Bandwidth 1300nm MHZ. ·km ----- ≥800 ≥500 Zero dispersion wavelength nm ≥1302 ,≤1322 ------ ------ ≥1295 ,≤1320 Zero dispersion slope nm ≤0.091 ------ ------ ≤0.11 PMD Maximum Individual Fibre um ≤0.2 ------ ------ ------ PMD Design Link Value Ps/(nm2*km) ≤0.08 ------ ------ ------ Fibre cutoff wavelength λc nm ≥1180 ,≤1330 ------ ------ ------ Cable cutoff wavelengthλcc nm ≤1260 ------- ------- ------- Mode field diameter(MFD) 1310nm um 9.2±0.4 ------ ------- ------- 1550nm um 10.4±0.8 ------ ------- ------- Numerical Aperture(NA) ----- 0.200±0.015 0.275±0.015 0.200±0.015 Step(mean of bidirectional measurement) dB ≤0.05 ≤0. 10 ≤0. 10 ≤0. 10 Irregularities over fibre length and point discontinuity dB ≤0.05 ≤0. 10 ≤0. 10 ≤0. 10 Difference backscatter coefficient dB/km ≤0.03 ≤0. 08 ≤0. 10 ≤0. 08 Attenuation uniformity dB/km ≤0.01 ----- ------ ----- Core diameter um ----- 50±1.0 62.5±2.5 50±1.0 Cladding diameter um 125.0±0.1 125.0±0.1 125.0±0.1 125.0±0.1 Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0 ≤1.0 Coating diameter um 242±7 242±7 242±7 242±7 Coating/cladding concentricity error um ≤12.0 ≤12.0 ≤12.0 ≤12.0 Coating non-circularity % ≤6.0 ≤6.0 ≤6.0 ≤6.0 Core/cladding concentricity error um ≤0.6 ≤1.5 ≤1.5 ≤1.5 Curl(radius) um ≤4 ----- ----- -----
TECHNICAL REQUIREMENTS:
Fiber Count Cable Dia (mm) Weight (kg/km) Min.Bending Radius(mm) Max Tension(N) Crush Pressure (N/100mm) Dynamic Static Short Term Long Term Short Term Long Term 2-36 10.5 85 20×D 10×D 1000/3000 600/1000 1000 300 36-60 11.4 110 20×D 10×D 1000/3000 600/1000 1000 300 48-72 11.9 115 20×D 10×D 1000/3000 600/1000 1000 300 72-84 12.8 125 20×D 10×D 1000/3000 600/1000 1000 300 84-96 13.7 140 20×D 10×D 1000/3000 600/1000 1000 300 96-108 14.6 160 20×D 10×D 1000/3000 600/1000 1000 300 108-120 15.4 175 20×D 10×D 1000/3000 600/1000 1000 300 120-132 16.3 195 20×D 10×D 1000/3000 600/1000 1000 300 132-216 17.2 220 20×D 10×D 1000/3000 600/1000 1000 300
