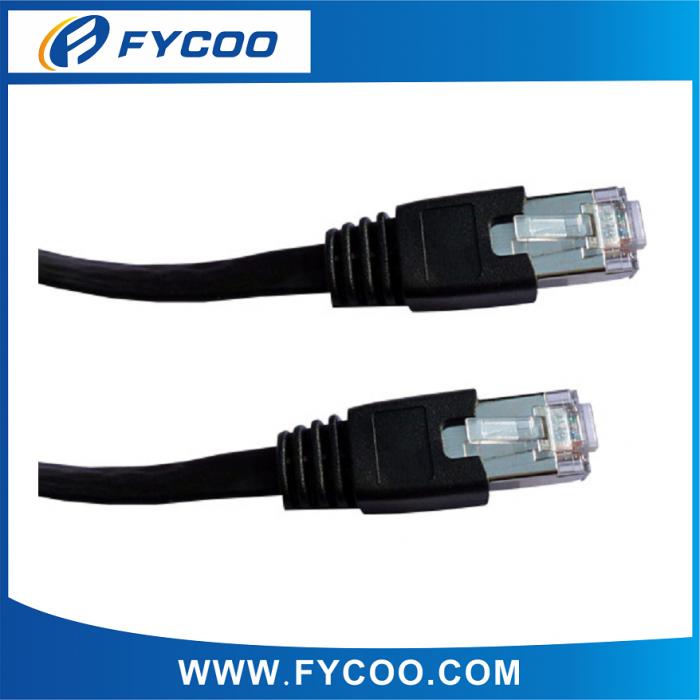

Name:Cat.6 FTP Flat Patch Cord
Model NO.FCPC6U008

Product Description

Cat.6 FTP Flat Patch Cord

FEATURE:

Cat6 FTP flat cable, FTP, 500 MHz, (1PX30AWG+Foil+drain wire) x4p+PVC+RJ45X2PCS, Gold plated pins, Pass fluke test, Different length optional

SPECIFICATION:

ITEM



CAT6 FTP 7/0.20BC flat patch cable

No. of   Cord.



4  Pair

Conductor

Material

Bare  Copper  Wire  Stranded



Construction

30AWG; 7 / 0.10 ± 0.008  mm

Insulation

Material

Polyethylene



Thickness

0.18±0.02  mm



Diameter

0.95 ± 0.05 mm



Material

PVC

Jacket

Thickness

0.50  mm(Min. Thichness: 0.48mm)



Diameter

1.8*6.0mm,



Color

optional



Lenght

optional

Marking

optional



Shielding1

Material

Mylar  Spirally  Wrapped



Coverage

100%  coverage  with  25%  overlapping

Drain Wire

Material

Aluminum Magnesium metal



Construction

 1 / 0.40 ± 0.008  mm or 7/0.12± 0.008  mm

ELECTRICAL  PROPERTIES



Conductor Resistance

 Max.  93.8  ohms/km at 20

Insulation Resistance

 Min.  100  mega  ohms-km at 20

Dielectric Test

 500V AC /1 min  ; No Breakdown

Impedance

 100 ohms ± 15%

Temperature Rating

 60

Voltage Rating

 30V

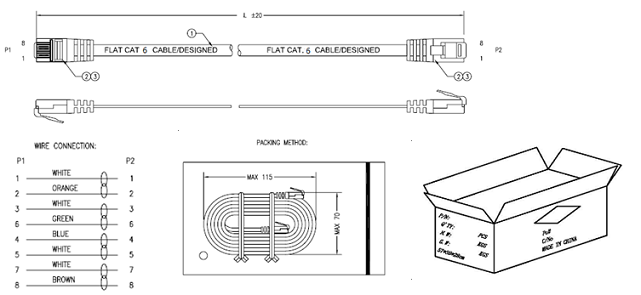

DRAWING&PACKING:
