Location:Index--->Product Center >> Networking Jack & Plug >> CAT3. UTP Telephone Jack

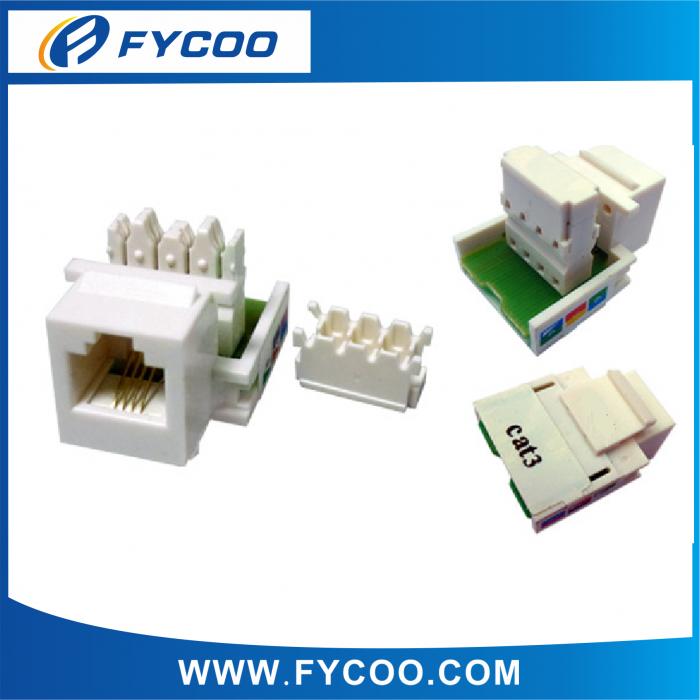

Name:CAT3. UTP Telephone Jack
Model NO.:FCKJ3U001
Housing materialABS UL94V-0
Insert materialFlame retardancy ABS UL94V-0
PCB materialFR-4, Thickness:1.6mm
Contact materialPhosphor Bronze Round Pin0.46mm plating
IDC contact materialPhosphor Bronze T0.50mm with TIN plating

Product Description

ELECTRICAL
  1,VOLTAGE RATING :l 25 VAC RMS.
  2,CURRENT  RATING :1.5 AMP.
  3.CONTACT RESIST ANCE :100 MILLIOHMS  MAX.
  4.DIELECTRIC STRENGTH:  750V AC RMA 60HZ,1MIN
  MATES WITH MODULAR PLUG CONFORMING TO FCC EART 68.

 MECHANICAL:
   1,Housing material:ABS UL94V-0
   2,Insert material:Flame retardancy ABS UL94V-0
   3,PCB material:FR-4, Thickness:1.6mm
   4,Contact material:Phosphor Bronze Round Pin=0.46mm plating
   5,IDC contact material:Phosphor Bronze  T=0.50mm with TIN plating

Pre:None   Next:Telephone Tooless Keystone Jack
