Name:	100 Pairs Wiring Blocks with legs
Model NO.	FCWB100002

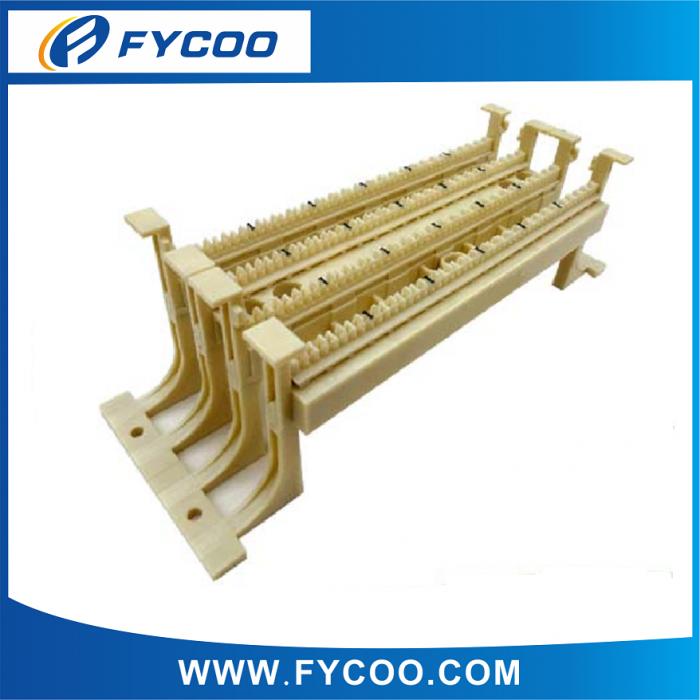

100 Pairs Wiring Blocks with legs

SPECIFICATION;

1. VOLTAGE RATING: 125 VAC RMS
2. CURRENT RATING: 1.5 AMP
3. CONTACT RESISTANCE: 100 MILLIOHMS MAX

ELECTRICAL:

1. VOLTAGE RATING: 125 VAC RMS

2. CURRENT RATING: 1.5 AMP

3. CONTACT RESISTANCE: 100 MILLIOHMS MAX

4. INSULATION RESISTANCE: 1000 MEGOHMS MIN @ 500 VDC

5. DIELECTRIC STRENGTH: 750 AC RMS 60HZ, 1MIN

MECHANICAL:

1. BASE MATERIAL: PC UL94V-0

2. CABLE BINDER MATERIAL: PC UL94V-0

3. LEG MATERIAL: PC UL94V-0

4. IDC HOUSING AND PLATE: PC UL94V-0

5.TERMINALS MATERIAL: PHOSPHOR BRONZE T=0.8mm

6.WIRE: AWG 24~26
