Location:Index--->Product Center >> Patch Panel & Wire manager >> Cat.6 48 Ports Patch Panel With Back Bar
|
Product Description

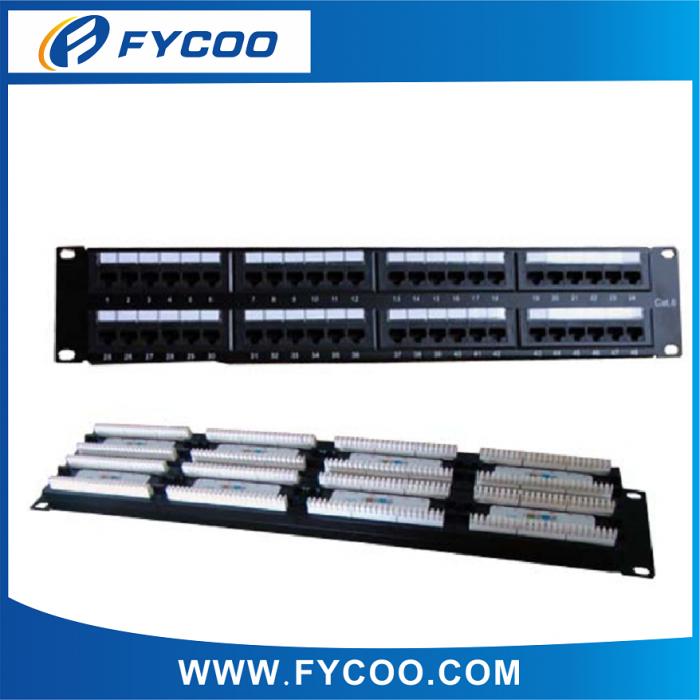

Cat.6 48 Ports Patch Panel With Back Bar
FEATURE:
1.Designed for use with Cat5e UTP Patch Cables
2.12/16/24/32/48 Ports available
3.Meet ANS/TIA/EIA 568B.2.ISO/IEC 11801&EN501734.IDC contract material: phosphor bronze with tin plating over nickel
4.IDC: PC UL94v-0,white color.110/krone/110 & krone Dual Use IDC available
5. With support hole for cable ties9. Metal sheet: Corrosion resistant streets.
6. 19”metal plate housing, black color painting
7. Entire high-carbon steel outer frame, with plastic powder cladding.
8. RJ45 jack frame material: PBT, golden plated phosphor bronze pins; Shielding shell of the RJ45 jack: Brass housing with nickel-plated. IDC clip: Tinned phosphor bronze pins.
9. Fitting for 22AWG/23AWG/24AWG cables, punching duration: 250 times. FCC ports inserting duration: 750 times.
10. Cabling sequence: T568A & B.
11. Punching tools: standard LSA tool.
12. Testing condition of transmitting capability: 100MHz.
SPECIFICATION:
ELECTRICAL:
1.VOLTAGE RATING: 125 VAC RMS
2. CURRENT RATING: 1.5 AMP
3. CONTACT RESISTANCE:100 MILLIOHMS MAX
4. INSULATION RESISTANCE :1000 MEGOHMS MIN @ 500 VDC
5. DIELECTRIC STRENGTH:750 VAC RMS 60Hz,1MIN
ENVIRONMENTAL:
1.STORAGE:-40° TO +85°
2.OPERATION:0° TO 70°
CONFORM TO ANSI/TIA/EIA-568 B.2-1
MATES WITH MODULAR PLUG CONFORMING TO FCC PART 68

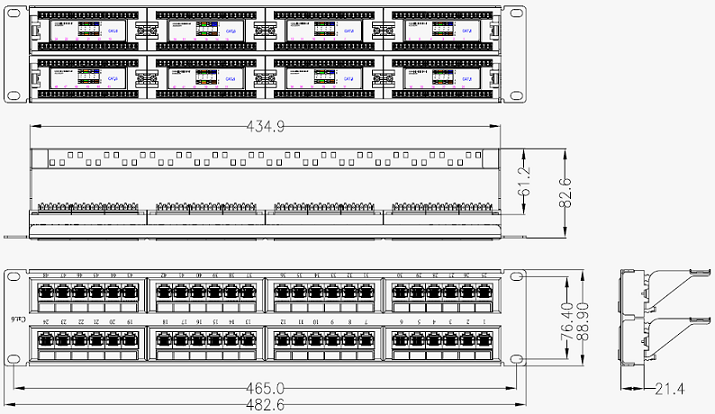

MECHANICAL:
1. HOUSING MATERIAL:PBT+15%GF UL94V-0
2. PANEL FRAME:ZN PLATING,THEN POWDER COATED
3. CONTACT MATERIAL:PC UL94V-0 CONTACT:PHOSPHOR BRONZE WITH NICKEL PLATING
4. RJ45 JACK LIFE:750 TIMES MIN`
5. IDC LIFE:200 TIMES MIN
6. WIRE:AWG 24~26
