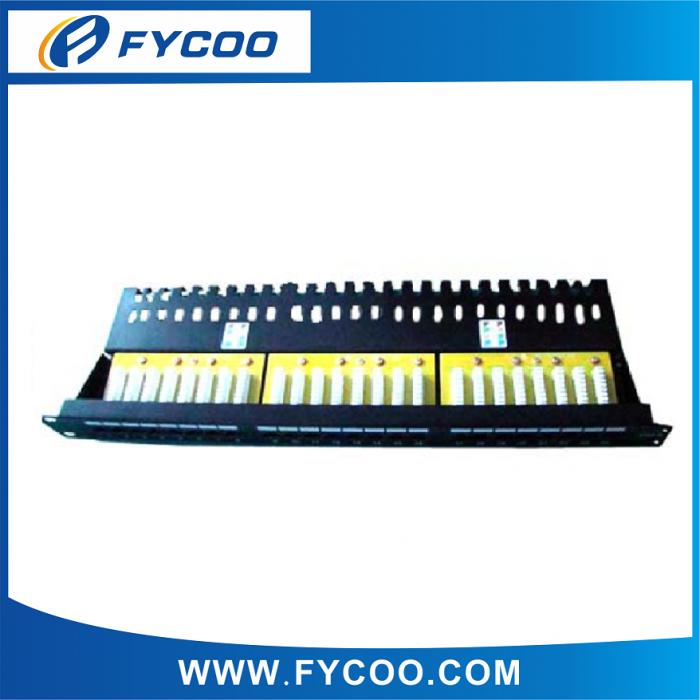

Name:	Cat6 UTP 24 Ports Patch Panel, Krone IDC
Model NO.	FCPP6F24022

Product Description

Cat6 UTP 24 Ports Patch Panel, Krone IDC

FEATURE:

1.Designed for use with Cat5e UTP Patch Cables

2.12/16/24/32/48 Ports available

3.Meet ANS/TIA/EIA 568B.2.ISO/IEC 11801&EN501734.IDC contract material: phosphor bronze with tin plating over nickel

4.IDC: PC UL94v-0,white color.110/krone/110 & krone Dual Use IDC available

5. With support hole for cable ties9. Metal sheet: Corrosion resistant streets.

6. 19”metal plate housing, black color painting

7. Entire high-carbon steel outer frame, with plastic powder cladding.

8. RJ45 jack frame material: PBT, golden plated phosphor bronze pins; Shielding shell of the RJ45 jack: Brass housing with nickel-plated. IDC clip: Tinned phosphor bronze pins.

9. Fitting for 22AWG/23AWG/24AWG cables, punching duration: 250 times. FCC ports inserting duration: 750 times.

10. Cabling sequence: T568A & B.

11. Punching tools: standard LSA tool.

12. Testing condition of transmitting capability: 100MHz.

SPECIFICATION：

ELECTRICAL?

1.VOLTAGE RATING: 125 VAC RMS

2. CURRENT RATING: 1.5 AMP

3. CONTACT RESISTANCE:100 MILLIOHMS MAX

4. INSULATION RESISTANCE :1000 MEGOHMS MIN @ 500 VDC

5. DIELECTRIC STRENGTH:750 VAC RMS 60Hz,1MIN

ENVIRONMENTAL:

1.STORAGE:-40° TO +85°

2.OPERATION:0° TO 70°

CONFORM TO ANSI/TIA/EIA-568 B.2-1

MATES WITH MODULAR PLUG CONFORMING TO FCC PART 68

MECHANICAL:

1. HOUSING MATERIAL:PBT+15%GF UL94V-0

2. PANEL FRAME:ZN PLATING,THEN POWDER COATED

3. CONTACT MATERIAL:PC UL94V-0 CONTACT:PHOSPHOR BRONZE WITH NICKEL PLATING

4. RJ45 JACK LIFE:750 TIMES MIN`

5. IDC LIFE:200 TIMES MIN

6. WIRE:AWG 24~26
